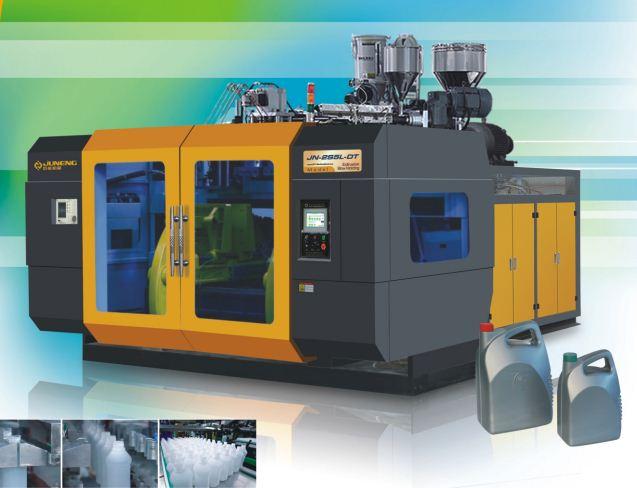

Features
-
The machine provides fast molding performance without scrap or connecting lines on bottle bottom or side.
-
Maximum uniformity of bottle weight, thickness and volume.
-
Safety system for Screw, Hydraulic parts and oil Temperature.
-
Germany design head with Dynamic, hydraulic blowing in all Direction.
-
Head: Single, Double, tripartite, Quartet – According your needs.
-
Ability to add a control device for Parizon thickness, Touch screen, and cutting unit.
-
Bottle body, neck and mouth can be varied to meet specific requirements.
-
Extremely smooth and elegant bottle surface is ideal for high-quality and high-price packaging.
-
This high production machine is capable of producing bottles in multiple cavities at one time.
-
Suitable for various materials, such as PE, PP, PS, PC, etc., for producing various types of bottles.
Application :
- Bottles and jars from 50 cc till 220 Litter for :
-
Cosmetic, Medical consumables, Pharmaceutical, Hospital products, Chemical products ….etc.
Paramters
|
Model |
Unit |
EB10H40S |
EB10H45S |
EB10H50S |
|
Max Product |
L |
1.0 |
1.0 |
1.0 |
|
Clamping Force |
KN |
27 |
27 |
27 |
|
Dry Cycle Time |
Sec |
3.2 |
3.2 |
3.2 |
|
Screw Diameter |
mm |
Φ 40 |
Φ 45 |
Φ50 |
|
Screw L/D Ratio |
L/D |
24 |
24 |
22 |
|
Screw Rotary Speed |
RPM |
75 |
75 |
75 |
|
Extrusion Weight (HDPE) |
kg/hr |
20 |
25 |
30 |
|
Extrusion Mototr Power |
kw |
5.5 |
7.5 |
11 |
|
Pump Motor Power |
kw |
5.5 |
5.5 |
5.5 |
|
Heating Capacity |
kw |
3.6 |
4.5 |
5.5 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
1.0 |
1.0 |
1.5 |
|
Chiled Water Consumption |
L/min |
13 |
13 |
13 |
|
Oil Tank Capacity |
L |
47 |
47 |
47 |
|
Machine Dimenssion (L x W x H) |
mm |
2200 x 1700 x 2200 |
|
Machine Weight |
kg |
1500 |
1700 |
1800 |
|
Model |
Unit |
EB25H55S |
EB25H65S |
EB25H55-40D |
EB25H65-40D |
|
Max Product |
L |
2.5 |
2.5 |
2.5 |
2.5 |
|
Clamping Force |
KN |
53 |
53 |
53 |
53 |
|
Dry Cycle Time |
Sec |
5.0 |
5.0 |
5.0 |
5.0 |
|
Screw Diameter |
mm |
Φ 55 |
Φ 65 |
Φ55+Φ40 |
Φ65+Φ40 |
|
Screw L/D Ratio |
L/D |
25 |
25 |
25+25 |
25+25 |
|
Screw Rotary Speed |
RPM |
75 |
75 |
75+40 |
75+40 |
|
Extrusion Weight (HDPE) |
kg/hr |
40 |
55 |
40+11 |
55+11 |
|
Extrusion Mototr Power |
kw |
11 |
15 |
11+4 |
15+4 |
|
Pump Motor Power |
kw |
7.5 |
7.5 |
7.5 |
7.5 |
|
Heating Capacity |
kw |
8 |
11 |
8+4.5 |
11+4.5 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
1.5 |
1.5 |
1.5 |
1.5 |
|
Chiled Water Consumption |
L/min |
50 |
50 |
50 |
50 |
|
Oil Tank Capacity |
L |
100 |
100 |
100 |
100 |
|
Machine Dimenssion (L x W x H) |
mm |
3200 x 2100 x 2200 |
|
Machine Weight |
kg |
3500 |
3900 |
4000 |
4500 |
|
Model |
Unit |
EB50H70S |
EB50H75S |
EB50H75-45D |
EB50H75-25S |
|
Max Product |
L |
5.0 |
5.0 |
5.0 |
5.0 |
|
Clamping Force |
KN |
86 |
86 |
86 |
86 |
|
Dry Cycle Time |
Sec |
5.8 |
5.8 |
5.8 |
5.8 |
|
Screw Diameter |
mm |
Φ 70 |
Φ 75 |
Φ75+Φ45 |
Φ75+Φ25 |
|
Screw L/D Ratio |
L/D |
25 |
26 |
26+25 |
26+20 |
|
Screw Rotary Speed |
RPM |
65 |
65 |
65+40 |
65+25 |
|
Extrusion Weight (HDPE) |
kg/hr |
70 |
85 |
85+20 |
85+2 |
|
Extrusion Mototr Power |
kw |
22 |
22 |
22+5.5 |
22+1.5 |
|
Pump Motor Power |
kw |
15 |
15 |
15 |
15 |
|
Heating Capacity |
kw |
15 |
18 |
18+6 |
18+3 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
2.5 |
2.5 |
2.5 |
2.5 |
|
Chiled Water Consumption |
L/min |
100 |
100 |
100 |
100 |
|
Oil Tank Capacity |
L |
140 |
140 |
140 |
140 |
|
Machine Dimenssion (L x W x H) |
mm |
3600 x 2500 x 2400 |
|
Machine Weight |
kg |
6000 |
6200 |
6700 |
6700 |
|
Model |
Unit |
EB30U55 |
EB30U65 |
EB70U70 |
EB70U75 |
EB70U85 |
|
Max Product |
L |
4 |
7 |
10 |
|
Clamping Force |
KN |
65 |
85 |
110 |
|
Max Mold Size (W x H) |
mm |
400 x 3600 |
500x450 |
580x450 |
|
Screw Diameter |
mm |
55 |
65 |
70 |
75 |
85 |
|
Screw L/D Ratio |
L/D |
25 |
25 |
25 |
24 |
24 |
|
Screw Rotary Speed |
RPM |
75 |
75 |
75 |
75 |
75 |
|
Extrusion Weight (HDPE) |
kg/hr |
50 |
65 |
80 |
95 |
120 |
|
Extrusion Mototr Power |
kw |
11 |
15 |
18.5 |
22 |
30 |
|
Pump Motor Power |
kw |
7.5 |
11 |
11 |
|
Heating Capacity |
kw |
8 |
11 |
15 |
18 |
25 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
1.5 |
2.5 |
2.5 |
|
Chiled Water Consumption |
L/min |
50 |
100 |
100 |
|
Oil Tank Capacity |
L |
95 |
130 |
130 |
|
Machine Dimenssion (L x W x H) |
mm |
3630 x 2060 x 2400 |
3780 x 2260 x 2500 |
4215 x 2260 x 2500 |
|
Machine Weight |
kg |
4400 |
4500 |
5500 |
5650 |
5820 |
|
Model |
Unit |
EB120U85 |
EB120U90 |
EB300U100 |
|
Max Product |
L |
12 |
30 |
|
Clamping Force |
KN |
150 |
200 |
|
Max Mold Size (W x H) |
mm |
600 x 520 |
820 x 420 |
850x700 |
|
Screw Diameter |
mm |
85 |
90-100 |
100 |
|
Screw L/D Ratio |
L/D |
24 |
24 |
24 |
|
Screw Rotary Speed |
RPM |
70 |
70-75 |
70 |
|
Extrusion Weight (HDPE) |
kg/hr |
130 |
150 |
200 |
|
Extrusion Mototr Power |
kw |
30 |
37-55 |
55 |
|
Pump Motor Power |
kw |
22 |
22 |
|
Heating Capacity |
kw |
20 |
22 |
25 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
4 |
3 |
|
Chiled Water Consumption |
L/min |
300 |
400 |
|
Oil Tank Capacity |
L |
180 |
210 |
|
Machine Dimenssion (L x W x H) |
mm |
4200 x 3500 x 3000 |
5500 x 5100 x 4300 |
|
Machine Weight |
kg |
11000 |
11200 |
20000 |
|
Model |
Unit |
EB120S85 |
EB300S100 |
|
Max Product |
L |
12 |
30 |
|
Clamping Force |
KN |
150 |
200 |
|
Max Mold Size (W x H) |
mm |
600 x 520 |
850x700 |
|
Screw Diameter |
mm |
85 |
90 |
|
Screw L/D Ratio |
L/D |
24 |
24 |
|
Screw Rotary Speed |
RPM |
70 |
70 |
|
Extrusion Weight (HDPE) |
kg/hr |
130 |
150 |
|
Extrusion Mototr Power |
kw |
30 |
37 |
|
Pump Motor Power |
kw |
22 |
22 |
|
Heating Capacity |
kw |
20 |
25 |
|
Operation Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption |
m/min |
4 |
3 |
|
Chiled Water Consumption |
L/min |
300 |
400 |
|
Machine Dimenssion (L x W x H) |
mm |
4200 x 2200 x 3000 |
5300 x 2200 x 4300 |
|
Machine Weight |
kg |
10000 |
15000 |
