Features
Paramters
Video & Images
Features
DESCRIPTION:

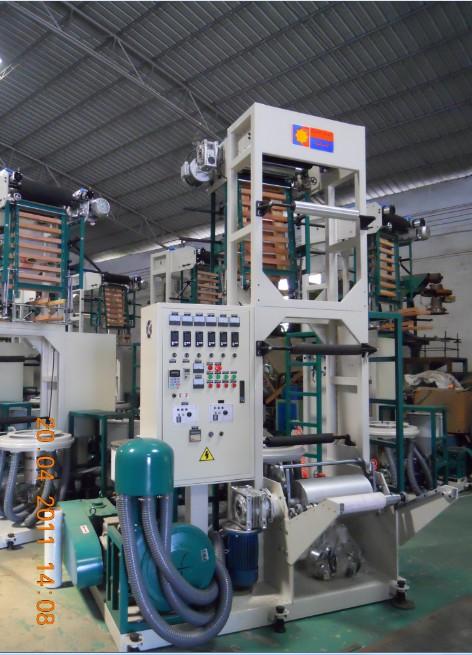

The blown Film Machine can produce plastic rolls from HDPE, LDPE, LLDPE and stretch materials.
It can be with various widths which enter in manufacturing many types, forms and sizes of plastic bags by the sealing and cutting machines.
Those films are widely used in the food, general merchandisers, daily uses, chemical industry, textiles, shopping bags and industrial packing
OPTIONAL EQUIPMENT?
Air Compressor.
Film Surface Treater.
Auto Loader.
Width Controller.
Embossed Roller.
Film Width Control.
Paramters
Model No
Mini-45
Mini-45
Mini-H-45
Material to be used
LDPE/LLDPE
HDPE
LDPE/LLDPE
Screw Diameter
45mm
45mm
45mm
Screw Length L/D
26/1
26/1
26/1
Screw & Barrel Material
HONING FINISHED HARDNESS BARREL
Gear Material
SCM-4
Heater Capacity
15Kw
15Kw
15Kw
Main Motor (INVERTER)
20HP
20HP
Barrel Cooling System
AIR COOLING
Max. Extrusion Output /hr
40kg/hr
35kg/hr
60kg
(HDPE) Inflation Spiral Dies
40 & 60 mm
(LLDPE) Inflation Spiral Dies
125mm
Width & Thickness of Tube
0.02-0.2mm 550mm/ max.
0.01-0.06mm 600mm/ max.
0.02-0.2mm 600mm/ max.
CONTROL PANEL
Complete set with operation switch A meter
Auto. Temperature Controller
5 Points
5 Points
Take-up Machine
HEIGHT ADJUSTABLE
Take-up Motor
1HP D.C
1HP D.C
1HP D.C
Take-up Speed
10-100m/minute
10-100m/minute
10-100m/minute
Pinch Roll Width
750mm
750mm
750mm
Winder
SURFACE TYPE
Winder Motors
20kg/cm Torque Motor
Cooling Equipment
Air-cooling Ring
1 set
1 set
1 set
Air Blower
5HP
5HP
5HP
Machine Height mm
3600mm
3600mm
3600mm
Images & Video
Images
Video
