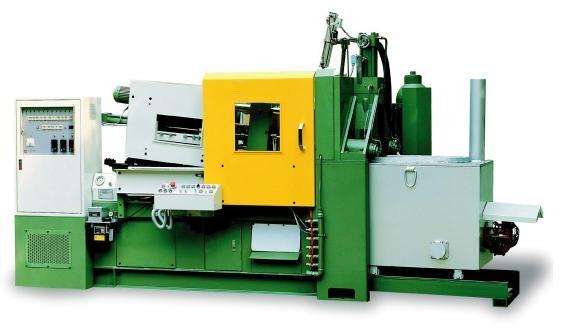

Features
CHARACTERISTICS:
-
Gear type mechanism for die height adjustment provides quick, stable and durable die clamping process.
-
Double Pump offers a quick and energy saving operation. Some models are using high quality single pump.
-
Centralized lubrication system automatically supplies a steady, metered amount of lubricant to all moving parts of the die locking assembly for extended life.
-
User friendly panel with safety interlock design is used for high efficient and safe operation.
-
Reliable and durable auto sprayer ensures stable and quick production.
-
Pneumatic take-off device facilitates fully automatic to increase productivity.
** Not applicable for DC200 or bigger models.
-
Two phases injection control is suitable for high quality die casting products.
-
High efficient water-cooling system improves oil quality and stabilizes the machine performance.
-
Reliable advanced programmable logic control system.
(Standard: Digital panel input control, Optional: 5” LCD display interface).
STANDARD FEATURES:
-
Multiple-stage pressure control for die closing and opening.
-
Core pulling device.
-
Hydraulic platform. (Two injection positions)
-
Pneumatic take-off device.
-
Low pressure die closing protective control.
-
Centralized electric lubrication system.
-
Hydraulic nozzle disengagement.
-
Auto sprayer.
-
Single casting piece for rear platen and cross-link support.
-
Gear type die height adjustment.
-
Electrical heating control for nozzle / gooseneck temperature.
-
Programmable logic controller.
-
Hydraulic ejector.
-
Two phrase injection control system. (Manual adjust)
-
Fuel heating furnace.
-
Digital panel input.
OPTIONAL FEATURES:
-
Advanced controller with color or mono LCD display.
-
Die casting injection monitoring system.
-
Electrical Furnace (LPG/Natural Gas furnace on request).
-
Automatic Portering System.
-
Automatic Extractor.
-
Servo control extracting robot.
-
Electrical control injection system.
-
Nozzle gas heater.
-
High quality hydraulic oil filter.
-
Elevator type sprayer.
-
Extra core pulling device.
-
Pneumatic safety door.
-
Extra Sprayer
-
Furnace self timer.
Paramters
Item |
Unit |
DC30 |
DC50 |
DC88 |
DC100 |
DC130 |
DC160 |
DC200 |
DC280 |
DC400 |
CLAMPING UNIT |
Clamping Force |
KN (Ton) |
300 |
500 |
880 |
1000 |
1300 |
1600 |
2000 |
2800 |
4000 |
Die Opening Stroke |
Mm |
180 |
230 |
280 |
300 |
350 |
350 |
400 |
460 |
550 |
Ejector Force |
KN |
30 |
50 |
50 |
70 |
88 |
108 |
108 |
158 |
180 |
Ejector Stroke |
mm |
50 |
60 |
60 |
70 |
85 |
85 |
100 |
100 |
120 |
Die Height min. – max. |
mm |
100-310 |
120-340 |
150-360 |
150-450 |
170-450 |
205-550 |
250-550 |
250-650 |
300-750 |
Platen Size (HxV) |
mm |
407x393 |
456x456 |
535x545 |
610x635 |
614x636 |
672x667 |
740x740 |
860x860 |
960x960 |
Space between Tie Bars |
mm |
271x271 |
310x310 |
357x357 |
409x409 |
409x409 |
459x459 |
510x510 |
560x560 |
620x620 |
Tie Bar Diameter |
mm |
45 |
56 |
63 |
70 |
75 |
80 |
90 |
110 |
130 |
INJECTION UNIT |
Shot position (below centre line) |
mm |
0 |
-40 |
0 |
-50 |
0 |
-60 |
0 |
-80 |
0 |
-80 |
0 |
-80 |
0 |
-100 |
0 |
-125 |
0 |
-125 |
Injection Force |
KN |
40 |
65 |
65 |
89 |
108 |
108 |
130 |
158 |
182 |
Injection Stroke |
mm |
110 |
130 |
130 |
150 |
150 |
150 |
175 |
200 |
230 |
Traverse Stroke |
mm |
150 |
190 |
190 |
200 |
200 |
200 |
200 |
200 |
340 |
Injection Plunger Diameter |
mm |
36 |
40 |
45 |
45 |
50 |
55 |
45 |
50 |
55 |
50 |
60 |
60 |
65 |
60 |
65 |
70 |
60 |
65 |
70 |
70 |
80 |
70 |
80 |
90 |
Shot Weight (zn) |
kg |
0.55 |
0.68 |
0.87 |
1 |
1.26 |
1.53 |
1 |
1.26 |
1.53 |
1.76 |
2.1 |
2.1 |
2.5 |
2.1 |
2.5 |
2.86 |
2.5 |
2.9 |
3.3 |
3.8 |
5 |
4.4 |
5.7 |
7.2 |
Melting Pot Capacity |
Dm3 (kg/Zn) |
40(260) |
50(330) |
50(330) |
50(330) |
55(360) |
55(360) |
110(720) |
110(720) |
200(1350) |
ELECTRICAL SYSTEM |
Electric Motor Power |
KW |
7.5 |
11 |
11 |
11 |
15 |
15 |
15 |
18.5 |
22 |
OTHERS |
Hydraulic Working Pressure |
MPa |
10.5 |
10.5 |
10.5 |
14 |
14 |
14 |
14 |
14 |
14 |
Furnace Consumption |
Diesel |
Kg/h |
3.5 |
4.8 |
4.8 |
4.8 |
4.8 |
4.8 |
6.3 |
6.3 |
11.2 |
Electricity |
KW |
20 |
28 |
28 |
28 |
28 |
28 |
30 |
42 |
42 |
Hydraulic Tank Capacity |
Liter |
200 |
200 |
250 |
300 |
300 |
300 |
400 |
500 |
800 |
Nozzle Heating Power |
KW |
1.5 |
2 |
2 |
2.5 |
2.5 |
2.5 |
4 |
5 |
5 |
Machine Weight |
Kg |
2600 |
3400 |
4000 |
5500 |
5700 |
6000 |
7800 |
11000 |
17500 |
Machine Dimension |
mm (LxHxW) |
3930*1430*1840 |
4300*1590*2120 |
4370*1530*2100 |
5000*1670*2250 |
5170*1630*2320 |
5520*1610*2350 |
5890*1730*2550 |
6430*1820*2560 |
7400*2250*2900 |
