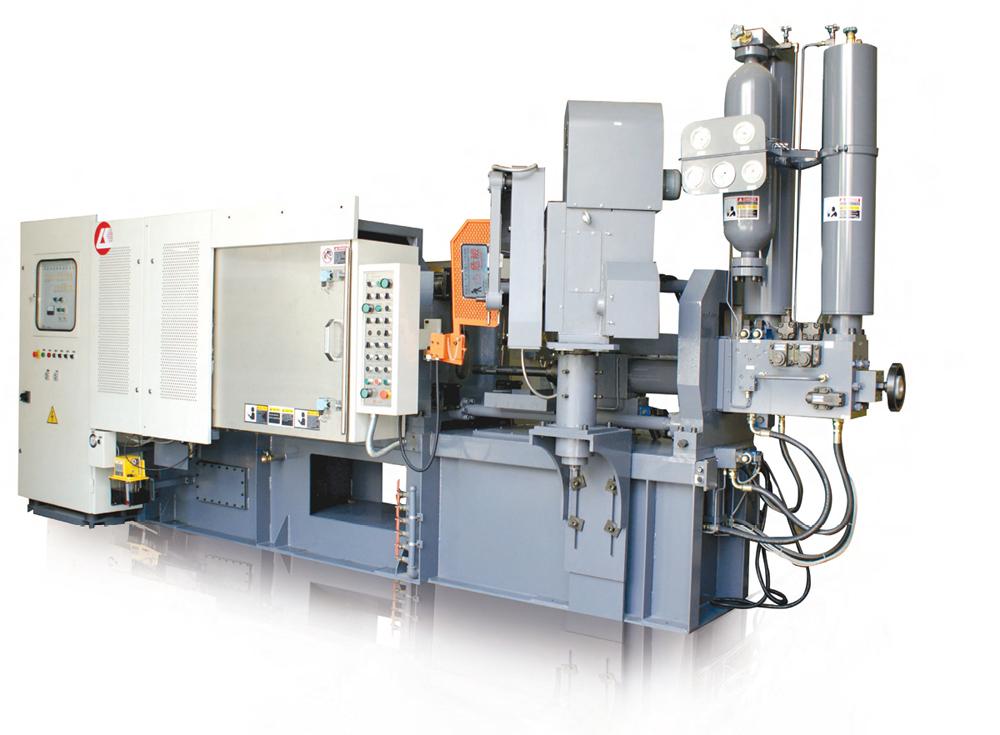

COLD CHAMBER - IMPRESS SERIES

Features
CHARACTERISTICS:
  1. Hydraulic driven die height adjustment provides stable and accurate adjustment operation.
  2. Control system ensures repeatability and reliable machine operation. Touch screen color LCD makes the operation more user-friendly.
  3. Strong and durable casting platens designed with CAE analysis for strong strength and long life.
  4. Centralized automatic toggle lubrication system ensures fixed volume of lubricant deliver to each toggle moving joint with adjustable cycle time, which increases the lifetime and reduces maintenance.
  5. Double main pump leads to energy saving and quick pressure response. The hydraulic component service life is prolonged with the external suction filter to clean hydraulic system.
  6. Multi injection-position facilitates more flexibility in die design; change of position is easily done by hydraulic raising mechanism.
  7. 3 phase injection control produces high quality die casting products by precise three phase injection system: 1st stage and 2nd stage, and pressure intensification stage.
  8. Independent accumulator for intensifier, rapid pressure builds up and is not influenced by 2nd stage injection process.
  9. Piston type accumulator ensures fast and powerful injection speed with stable pressure.

STANDARD FEAATURES:
  • Safety Door.
  • Plunger Head Oil Lubricating Device.
  • Double Main Pump.
  • Hydraulic Driven Die Height Adjustment.
  • Strong and Durable Casting Platens.
  • Piston Type Accumulator. Hydraulic Ejector and Core Pulling Device.
  • Multi-Injection Position.
  • Centralized Automatic Toggle Lubrication System.
  • Control System.
  • 3 Phase Injection Control.

OPTIONAL FEATURES:
  • Extra Core pull
  • Auto Safety Door.
  • Clamping Force Monitoring System.
  • Servo Pump.
  • Quick Die Change System.
  • Real Time Injection Control System.
  • Advanced Controller with high grade control software. Squeeze Pin.
  • Fix Platen Push Cylinder.
  • Electrical Proportional Injection Control.
  • Die Carrier.
  • Air Conditioner for the Control Cabinet.
  • Hydraulic Tie Bar Extraction.
  • Die Casting Injection Monitoring System.

Paramters
Item Unit DCC130 DCC160 DCC200 DCC280 DCC400 DCC500 DCC630 DCC800 DCC1000
Locking Force KN (ton) 1450(148) 1600(163) 2000(200) 2000(285) 4000(408) 5000(510) 6300(642) 8000(816) 10000(1020)
Die Opening Stroke mm 350 380 400 460 550 580 650 760 880
Die Height (Min-Max) mm 250-500 200-550 200-600 250-650 300-700 350-850 350-850 400-950 450-1150
Platen Size (HxV) mm 650x650 680x680 740x740 860x860 970x960

1162x1162

1200x1200

 1400x1400 1620x1620
Space between Tie Bars mm 429x429 460x460 510x510 560x560 620x620 760x760 750x750 910x910 1030x1030
Tie Bar Diameter mm 80 85 90 110 130 140 160 180 200
Ejector Force KN 108 108 108 150 180 240 315 315 500
Ejector Stroke mm 85 85 100 105 125 120 150 180 200
Intensifier KN 180 254 290 315 405 460 610 665 865
Injection Stroke mm 320 340 370 400 500 580 600 760 800
Injection Plunger Diameter mm 40 50 60 40 50 60 50 60 70 50 60 70 60 70 80 70 80 90 70 80 90 80 90 100 90 100 110
Shot Weight (Al) kg 0.7 1.1 1.6 0.8 1.3 1.8 1.3 1.9 2.6 1.5 2.1 2.9 2.7 3.6 4.7 4.3 5.6 7.1 4.3 5.7 7.2 7.2 9.1 11.2 9.5 11.7 14.2
Casting Pressure (with Intensification) MPa 141 90 62 202 129 89 147 102 75 162 112 82 144 106 81 122 93 73 158 121 96 132 104 85 136 110 91
Casting Area Cm2 90 140 205 72 120 175 1135 1194 265 170 245 335 275 375 490 405 535 680 395 515 655 600 760 940 730 905 1095
Max. Casting Area (40Mpa) Cm2 362 400 500 700 1000 1250 1575 2000 2500
Shot Position (Below Centre Line) Mm 0 -100 0 70 -140 0 -140 0 -125 -140 0 -175 0 -175 0 -250 0 -250 0 -300
Plunger Penetration Mm 115 135 150 140 200 250 250 297 300
Diameter of Pressure Chamber Flange Mm 110 101.6 110 101.6 101.6 165 165 200 240
Height of Pressure Chamber Flange Mm 10 12 10 12 12 15 15 20 20
Hydraulic Working Pressure MPa 14 14 14 14 14 16 14 14 16
Driving Motor KW 11 15 15 18.5 22 30 37 37 45
Hydraulic Oil Tank Capacity L 480 520 550 670 800 1000 1000 1200 2350
Machine Weight Kg 6000 6300 8000 10500 15000 25000 27600 39400 70000
Machine Dimensions (LxWxH) mm

5000

x

1590

x

2500

5100

x

1590

x

2550

5500

x

1710

x

2600

5900

x

1860

x

2600

7290

x

1970

x

2800

7890

x

2300

x

2850

8230

x

2300

x

2850

9010

x

3100

x

2940

10560

x

3500

x

3800
