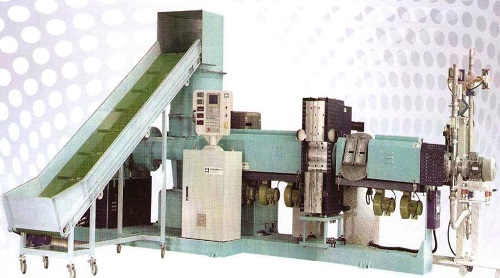

PLASTIC PELLETIZING & RECYCLING MACHINES

Features
Introduction:
  • Plastic Recycling and Pelletizing Machine is designed for recycling used and waste plastic film or bottles into granules.
  • It is applied to different materials like HDPE, LDPE, PP, EVA, PS and ABS.
  • All models are reasonable in design, easy in operation, convenient in maintenance with high output and low consumption.


Application Area:
  • Waste plastic recycling machinery consists of washing machinery, crushing machinery and granulating machinery.
  •  Washing machinery: Used for washing waste plastic that is covered by dirt such as oil, chemicals…etc.
  •  Crushing Machinery: Used for crushing plastic waste such as bottles, plastic board, plastic profiles, and plastic film.
  • Granulating Machinery: Used for granulating. The plastic granules are a kind of superior raw material. We can use it to produce plastic product.

Paramters
Model

YJ-PFR75

YJ-PFR85

YJ-PFR100

YJ-PFR120

YJ-PFR140

Products

PP/HDPE/LDPE/EVA/ABS/PS

Max. output/hr PP= 100kg HDPE= 120kg LDPE= 140kg PP= 180kg HDPE= 210kg LDPE= 230kg PP= 330kg HDPE= 360kg LDPE= 380kg PP= 500kg HDPE= 500kg LDPE= 600kg PP= 650kg HDPE= 680kg LDPE= 800kg
Total Power Consumption

75kw

128kw

218kw

310kw

441kw

SHREDDER
Shredding Drum Diameter (mm)

600

700

800

1000

1000

Drive Motor

25HP

40HP

75HP

100HP

125HP

Shredding Knives

4. Rotating   6. Fixed

4. Rotating   9. Fixed

4. Rotating   9. Fixed

6. Rotating    17. Fixed

4. Rotating    17. Fixed

EXTRUDER
Type

With or without venting hole

Screw Diameter (mm)

65

80

100

120

140

L/D Ratio

36:1

36:1

36:1

36:1

36:1

Screw Material

SACM645 / SACM645 / Nitride and Chrome Plated

Barrel Material

SACM645 / SACM645 / Precision ground and Nitride

Screw Speed (rpm)

0-170

0-170

0-150

0-130

0-130

Barrel Heater

20.5kw

32.5kw

40.9kw

55kw

75kw

Barrel Cooling

Air Cooling

Temperature Control Zone 1/8 HP x 5 1/8 HP blower x 5 sets 1/8 HP x 5 1/8 HP blower x 5 sets 1/8 HP x 6 1/8 HP blower x 6 sets 1/4 HP x 6 1/4 HP blower x 6 sets 1/2 HP x 8 1/2 HP blower x 8 sets
MAIN DRIVE MOTOR

30HP AC

60HP AC

125HP AC

150HP AC

250HP AC
